1. Principle

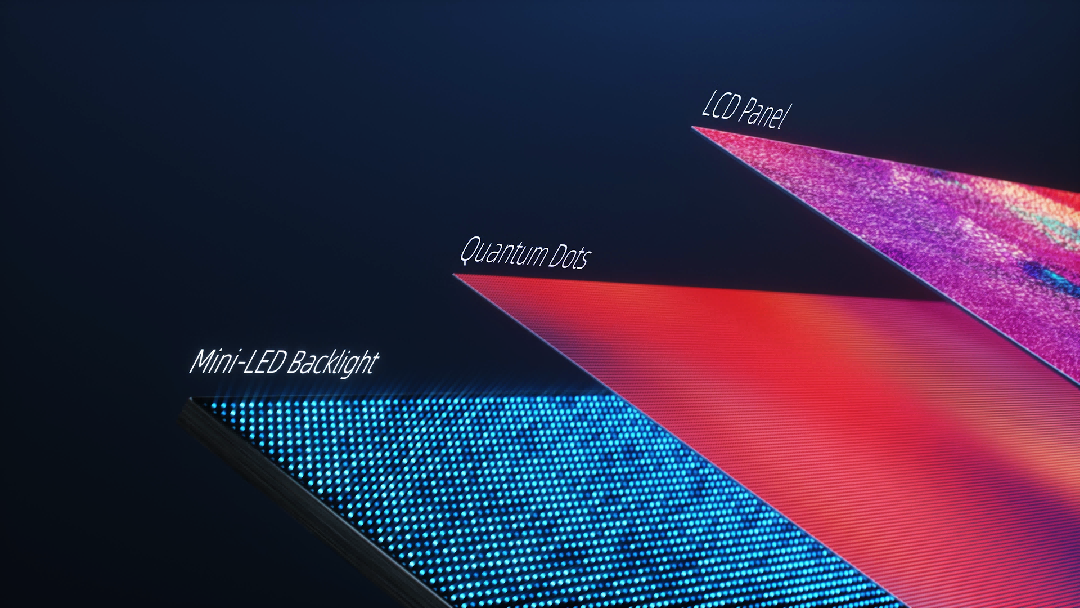

Mini LED is an enhanced back light solution for LCD panels. The conventional LED back light lamps are replaced by tiny LEDs of about 50-200 μm size, densely packed into thousands of micro LEDs. Each Mini LED can be driven independently, creating fine grained local dimming zones that approach pixel level brightness control.

2. Advantages over Traditional LCD

l Higher contrast & deeper blacks: Thousands of dimming zones allow dark area LEDs to be turned off completely, dramatically reducing halo effects and achieving contrast comparable to OLED.

l Higher peak brightness & HDR: Mini LED panels can reach >1000 nits, improving visibility in bright environments and supporting a wider dynamic range.

l Improved energy efficiency: Only the required local LEDs are lit, cutting overall power consumption by roughly 30-40% compared with full array backlit LCDs, and it eliminates flicker and burn in issues.

l Cost effective and mature: Compared with Micro LED and OLED, Mini LED uses well established LED manufacturing, offering higher yields and a price roughly 60 80% of OLED, making it the most cost effective solution for large size panels.

l Retains LCD strengths: It still leverages the mature liquid crystal panel technology, providing high brightness, long lifespan, an established production line, and a mature driver IC ecosystem.

3. Typical Applications

l High end TVs: Apple Pro Display XDR, Samsung QLED series, and other premium TVs adopt Mini LED back lights to achieve >1000 nits and excellent contrast.

l Laptops & professional monitors: Used in creative workstations and gaming laptops where high colour accuracy and brightness are required.

l Automotive displays: In vehicle infotainment screens and instrument clusters benefit from higher brightness and wider viewing angles.

l Commercial signage & digital signage: Retail, enterprise control rooms, and conference rooms employ large size Mini LED panels for vivid, high contrast content.

l Mobile devices: Some flagship smartphones and tablets are beginning pilot production of Mini LED screens to boost HDR and contrast performance.
