HCFSTN8F97
FSTN POSITIVE LCD
Customized solution
工作温度: -20~+70℃
储存温度: -30~+80℃
Details
Product Parameter
|
Item |
Specification
(Custom Solution） |
Unit |
|
Display area(AA) |
54.5(H) *28.56(V)
|
mm |
|
Outline Dimension |
58.51*34.56*3.2 |
mm |
|
Display model |
FSTN/POSITIVE/TRANSMISSIVE |
- |
|
Driving condition |
1/4DUTY,1/3BIAS ;VDD=3.3V |
- |
|
Viewing anlge |
6:00 |
o'clock |
|
Driver |
-- |
- |
|
Display mode |
Transmissive |
- |
|
Backlight |
White LED;Vf=3.0V;If=60mV |
- |
|
Operating temperature |
-20～+70 |
℃ |
|
Storage temperature |
-30～+80 |
℃ |

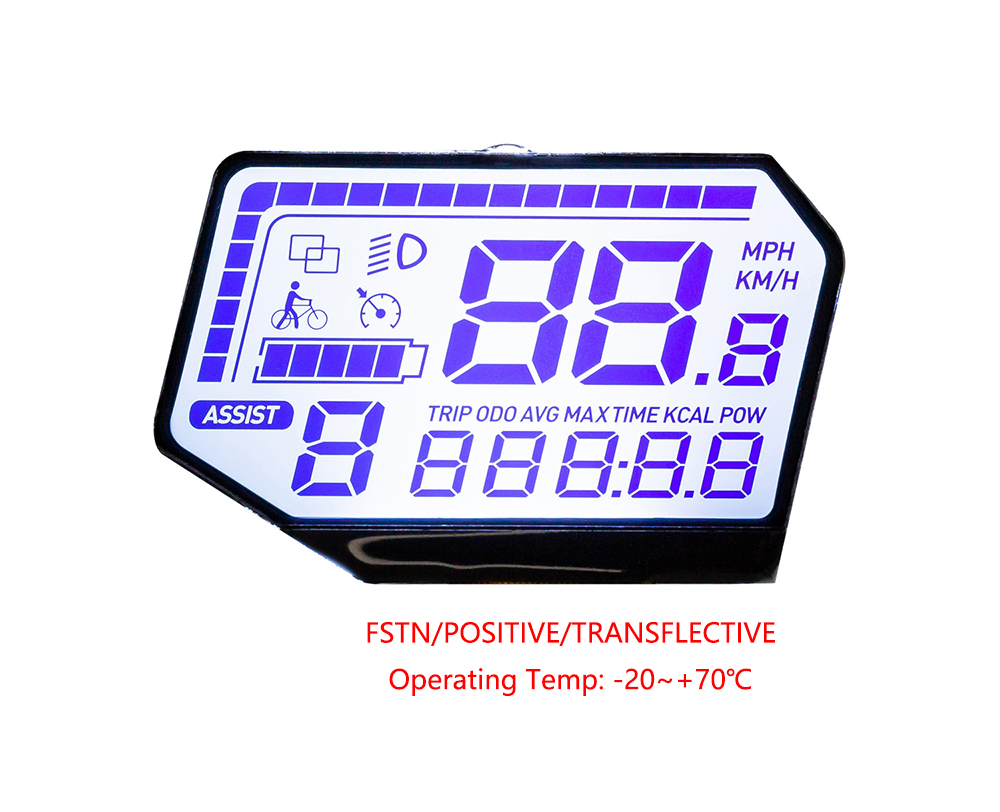

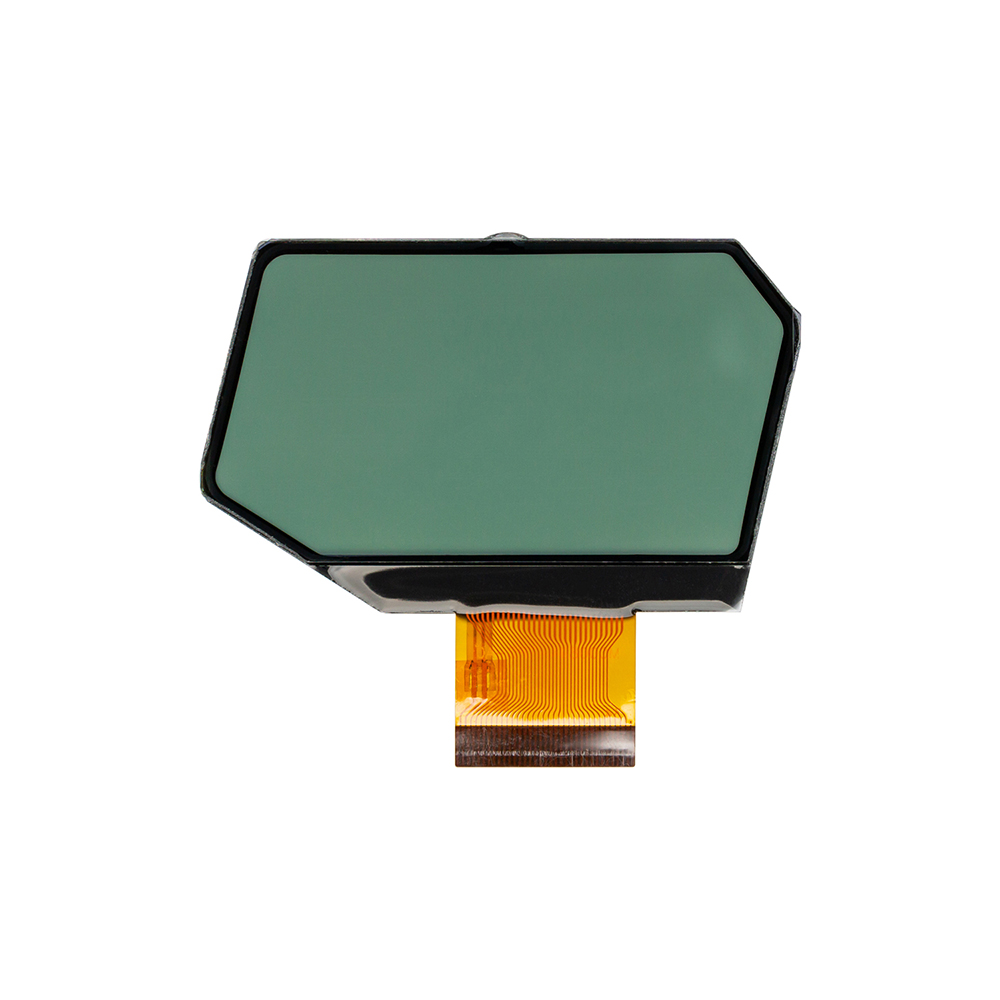

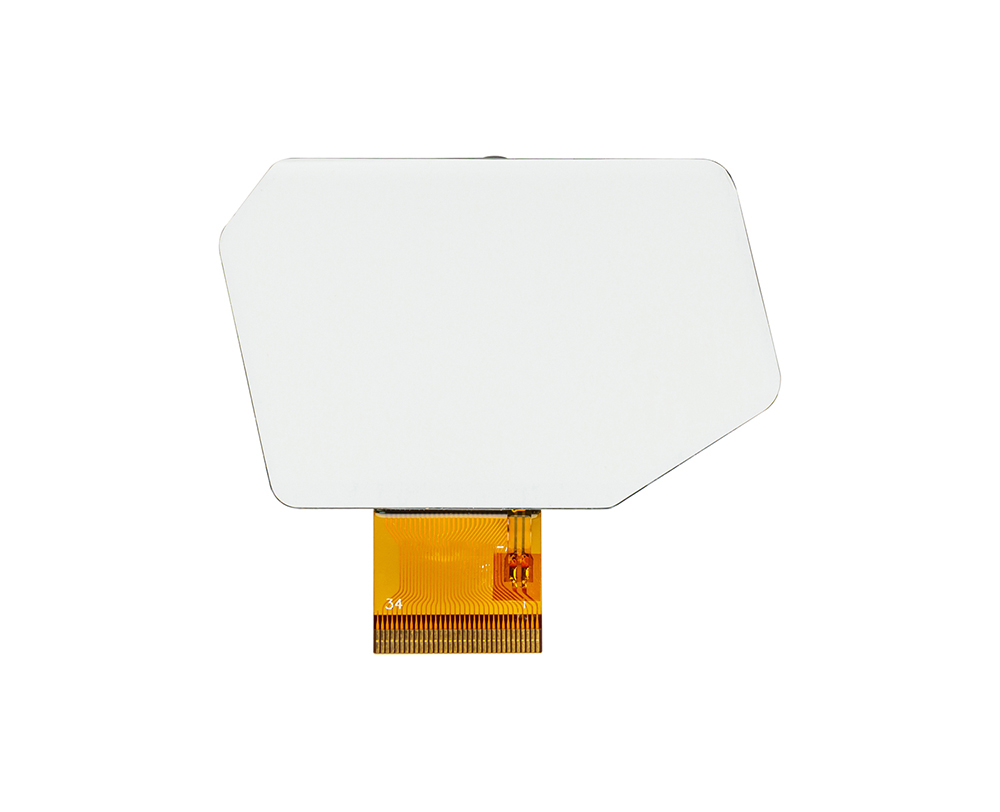

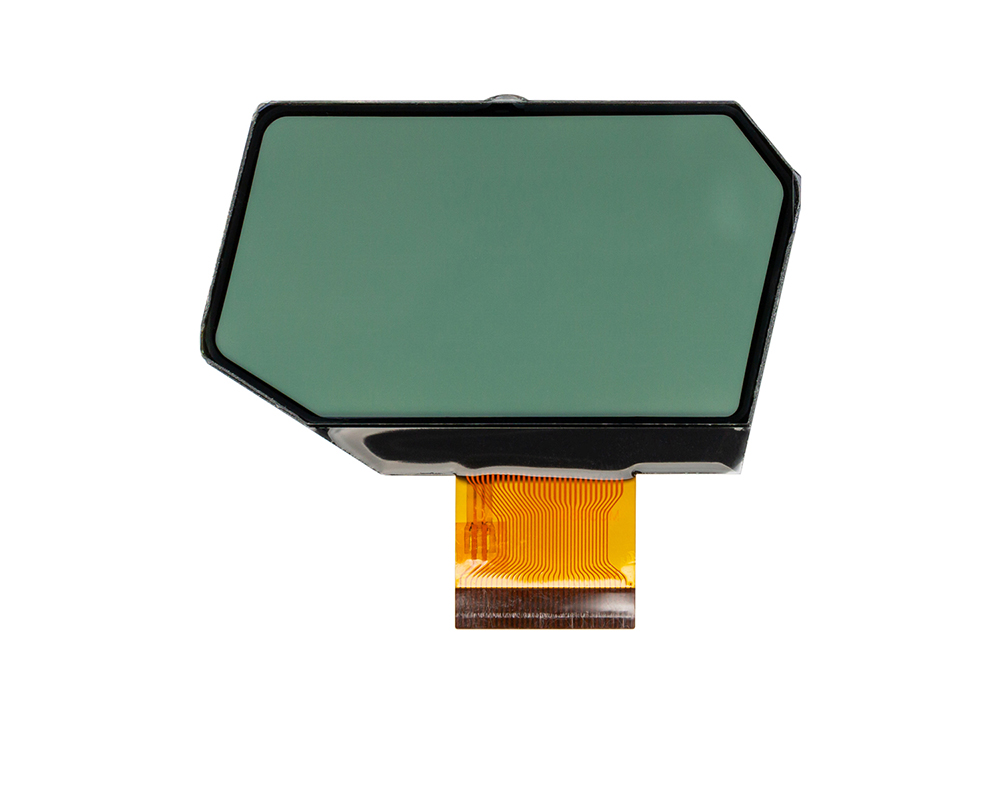

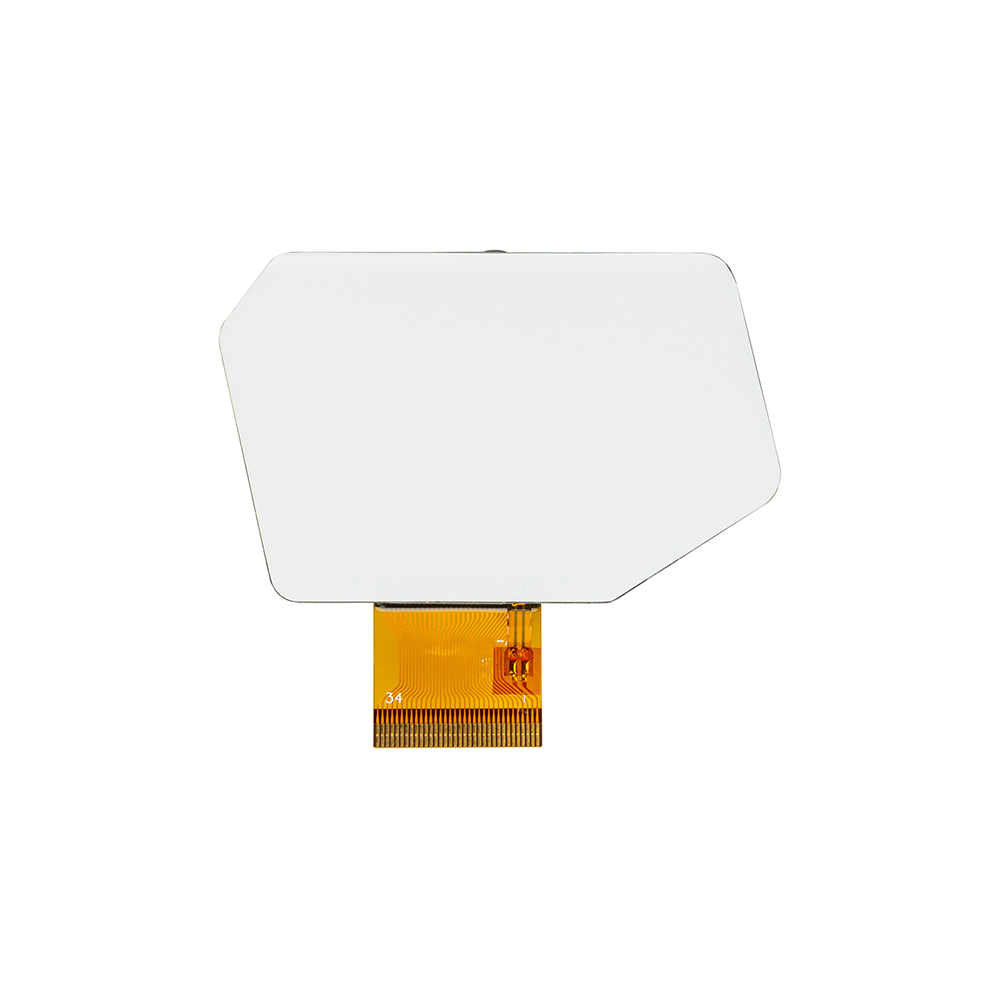

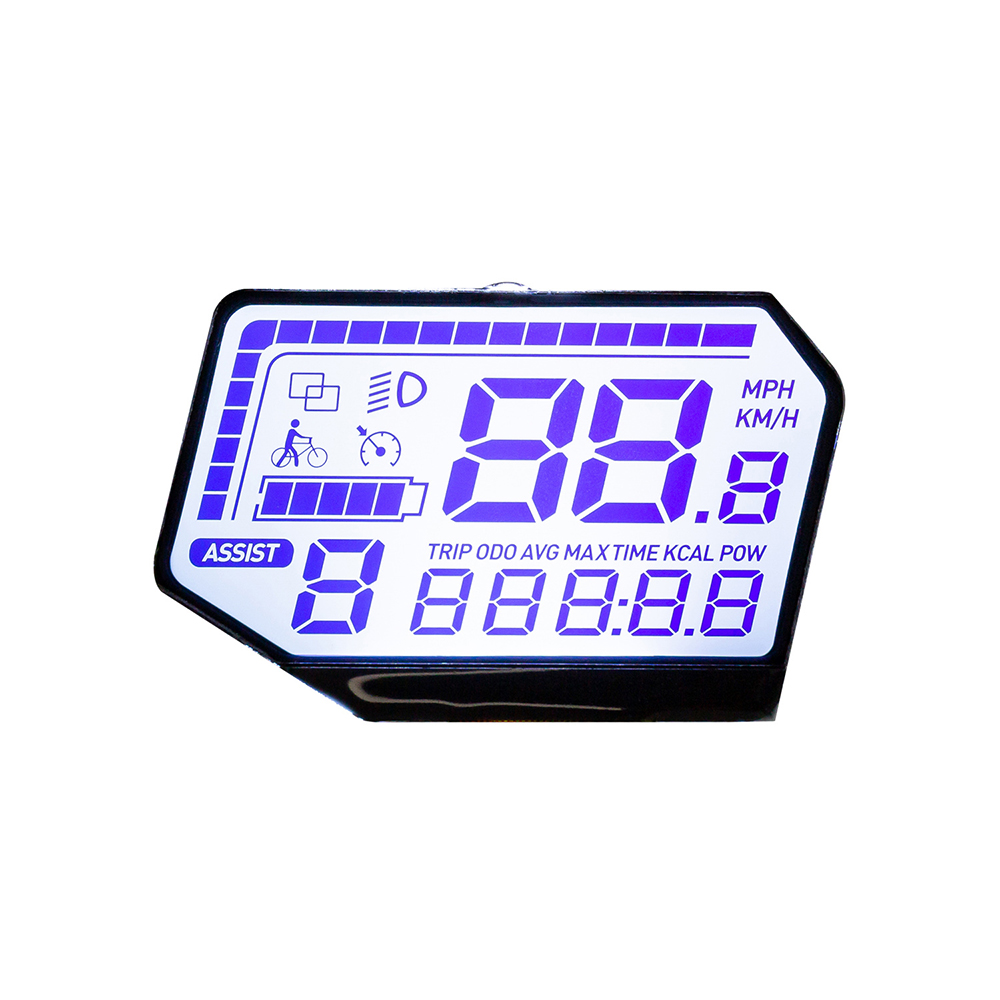

Product Image
