HCVA1F64
VA NEGATIVE LCD
Customized solution
IC: HT1621
Opearating temp: 0~+50℃
Storage temp: -10~+60℃
Details
Product Parameter
|
Item |
Specification
(Custom Solution） |
Unit |
|
Display area(AA) |
95(H) *54(V)
|
mm |
|
Outline Dimension |
114*85*14.4 |
mm |
|
Display model |
VA/NEGATIVE/TRANSMISSIVE |
- |
|
Driving condition |
1/4DUTY,1/3BIAS ;VDD=5.0V |
- |
|
Viewing anlge |
6:00 |
o'clock |
|
Driver |
HT1621 |
- |
|
Display mode |
Transmissive |
- |
|
Backlight |
White LED;Vf=3.0V;If=60*2mV |
- |
|
Operating temperature |
0～+50 |
℃ |
|
Storage temperature |
-10～+60 |
℃ |

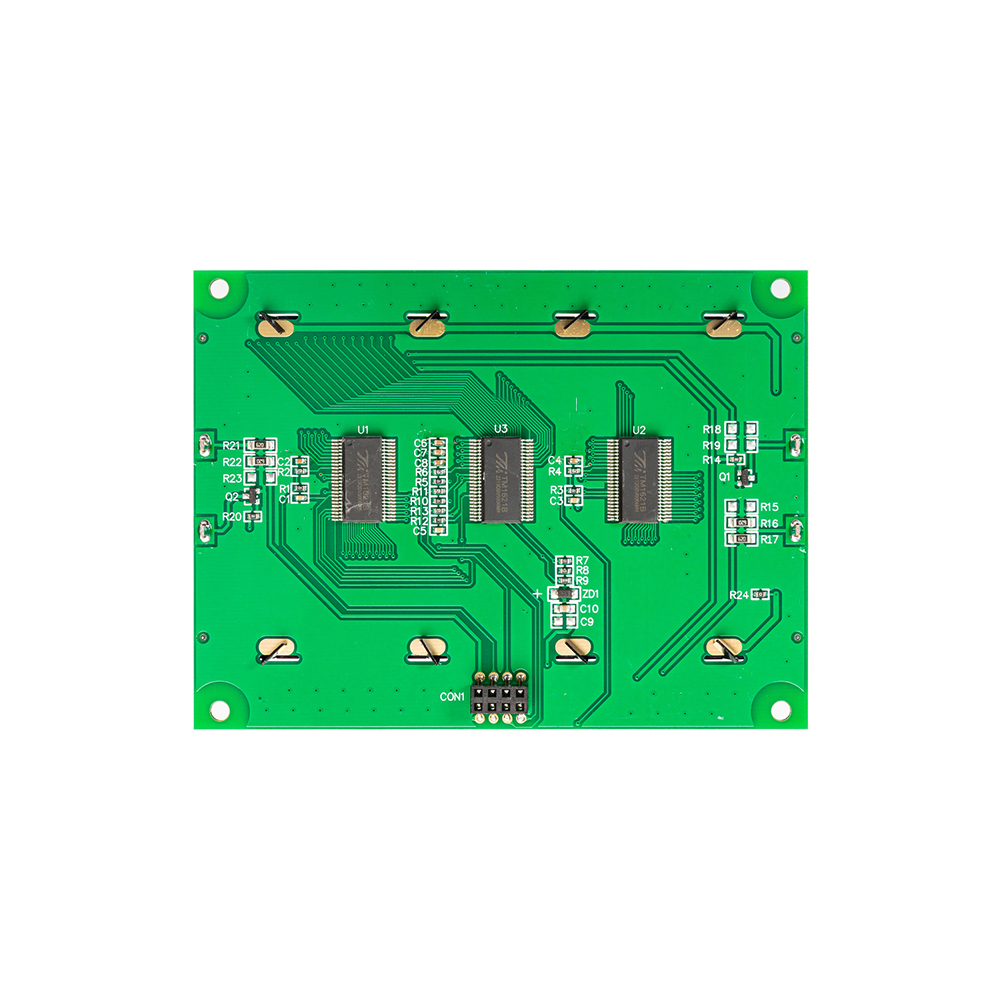

Product Image
