HCVA1F30
7.0" VA Nagetive LCD
IC: SC5037
Operating temp: -30~+80℃
Storage temp: -30~+90℃
Details
Product Parameter
|
Item |
Specification
(Custom Solution） |
Unit |
|
Display area(AA) |
156.6(H) *89.2(V) (7.0inch )
|
mm |
|
Outline Dimension |
165*100*5.7 |
mm |
|
Display model |
VA/NEGATIVE/TRANSMISSIVE |
- |
|
Driving condition |
1/2DUTY,1/2BIAS ;VDD=3.0V,VOP=7.0V |
- |
|
Viewing anlge |
12:00 |
o'clock |
|
Driver |
SC5037 |
- |
|
Display mode |
Transmissive |
- |
|
Backlight |
White LED;Vf=3.3V;If=270mV |
- |
|
Operating temperature |
-30～+80 |
℃ |
|
Storage temperature |
-30～+90 |
℃ |

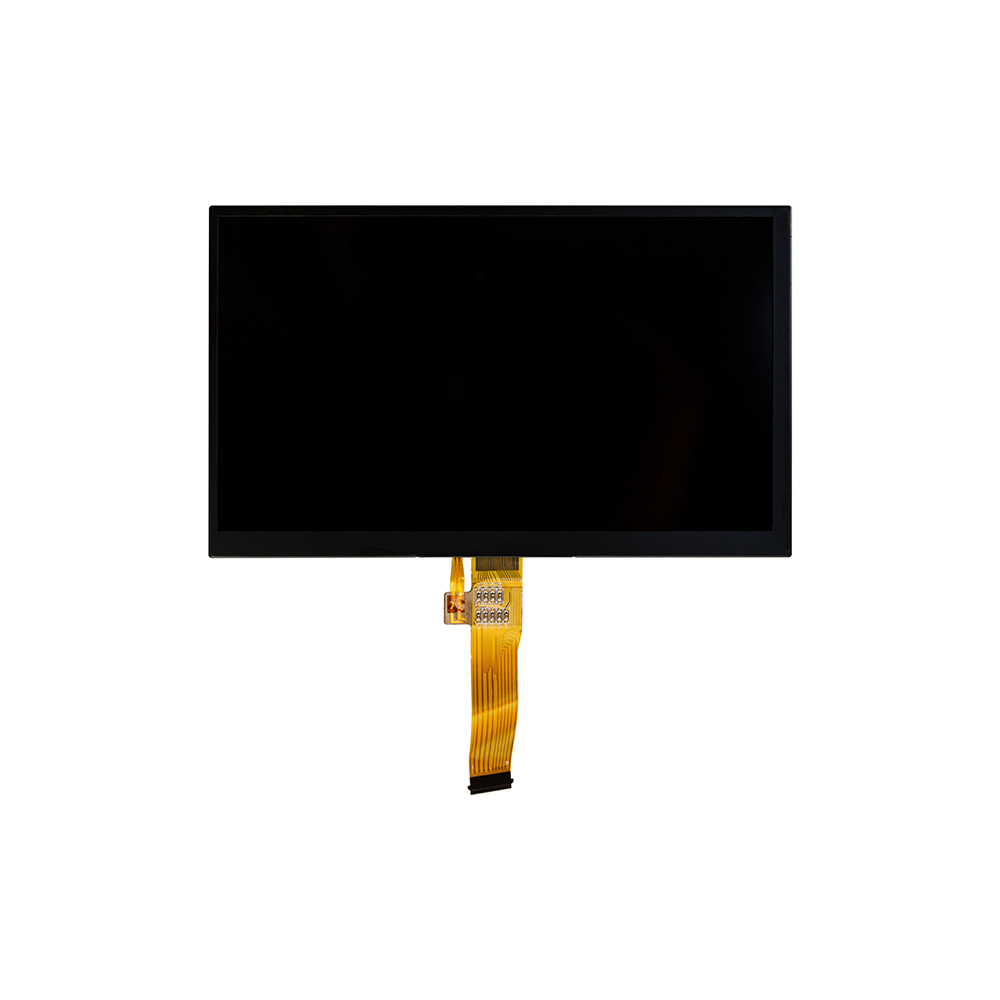

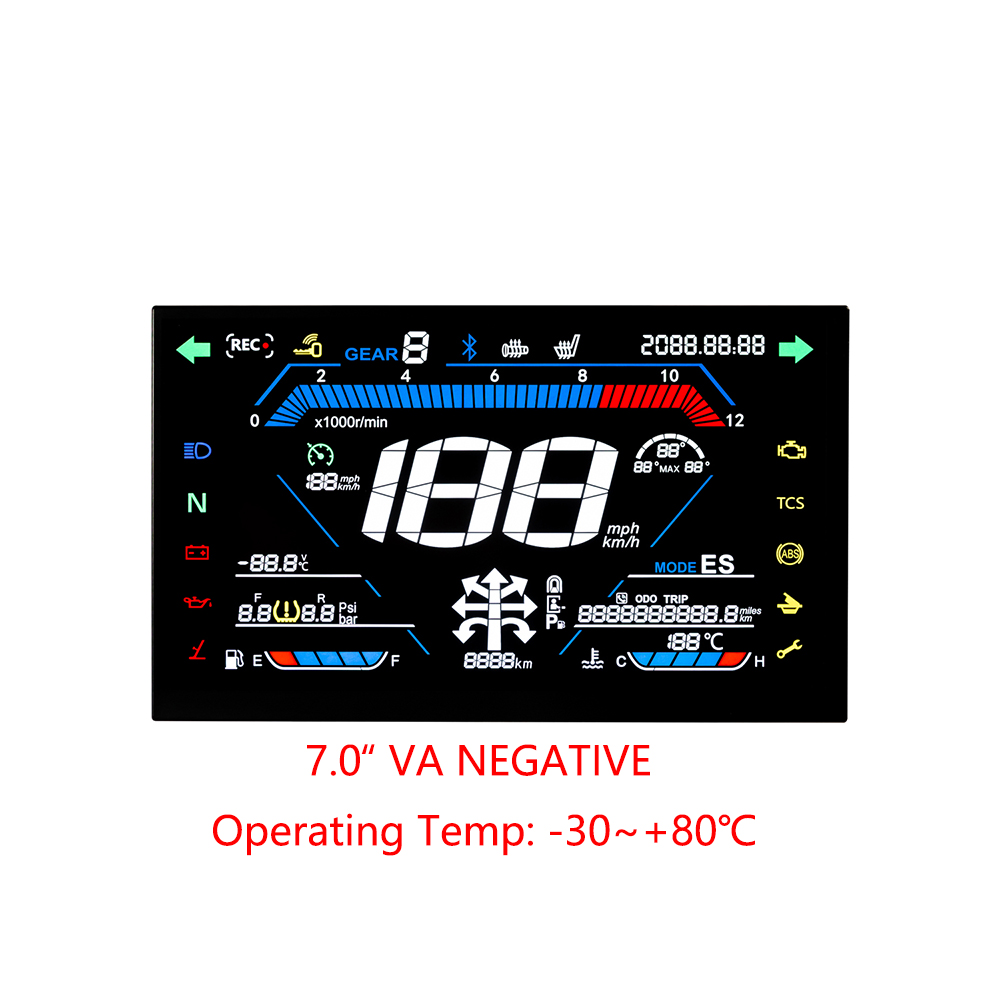

Product Image
