HC24HR8K2-01-A29
2.4 inch IPS LCD
320*480
RGB Interface
Capacitive touch
Details
Product Parameter
|
Item |
Specification |
Unit |
|
Display area(AA) |
33.12(H)*49.68(V)(2.35 inch)
|
mm |
|
Outline Dimension |
-- |
mm |
|
Driver element |
TFT active matrix |
- |
|
Display colors |
65K/262K/16.7M |
colors |
|
Number of pixels |
320(RGB)*480 |
dots |
|
Interface |
RGB |
|
|
Viewing anlge |
Free |
o'clock |
|
Driver |
- |
|
|
Display mode |
Transmissive/Normally Black |
- |
|
Touch Option |
Capacitive Touch |
|
|
Operating temperature |
-20～+70 |
℃ |
|
Storage temperature |
-30～+80 |
℃ |

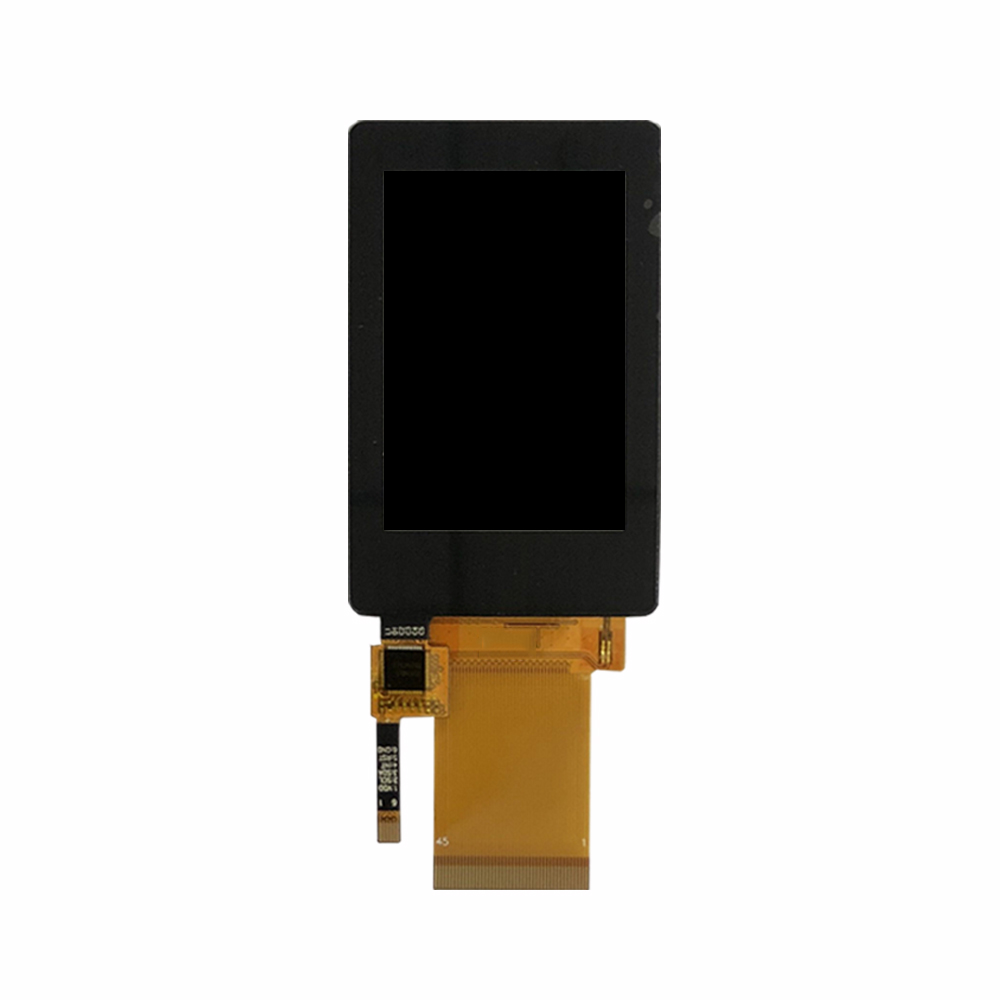

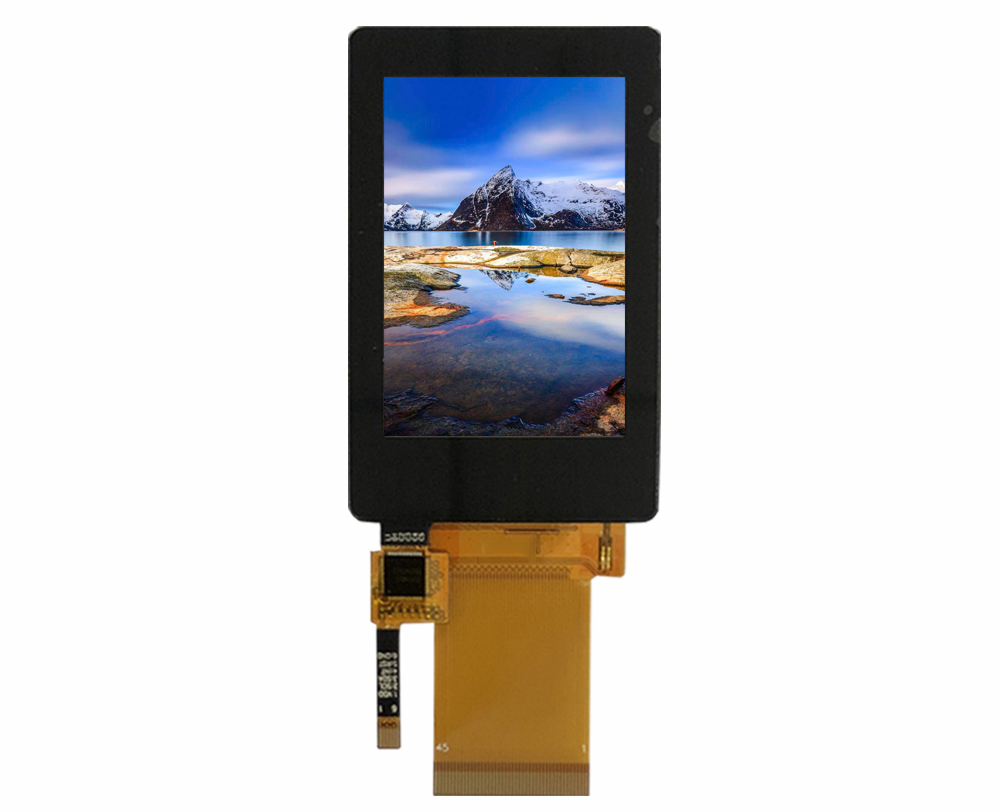

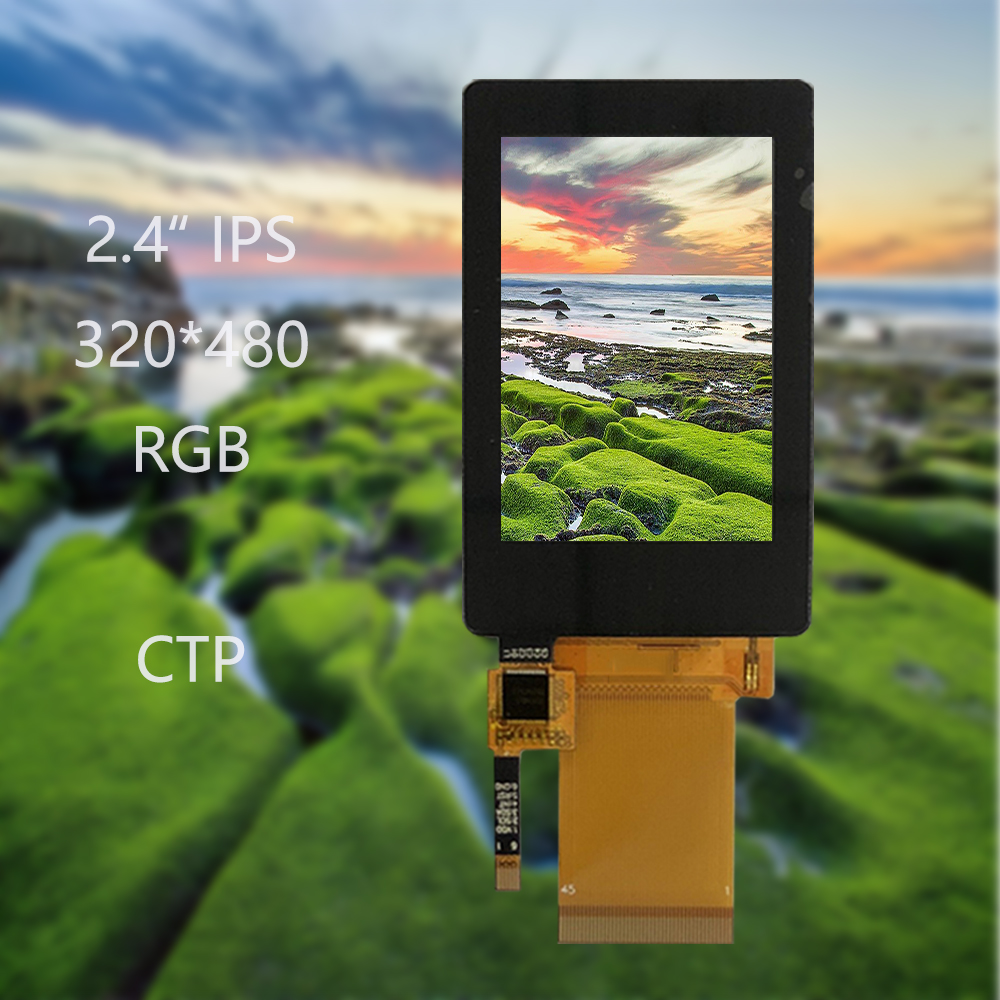

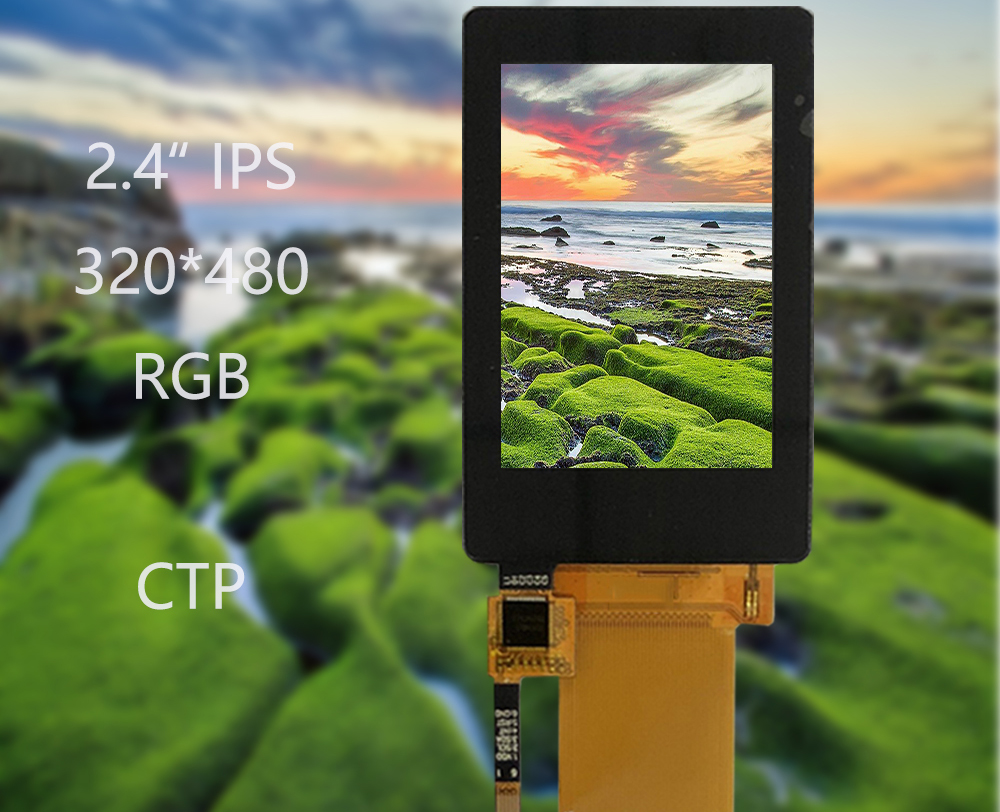

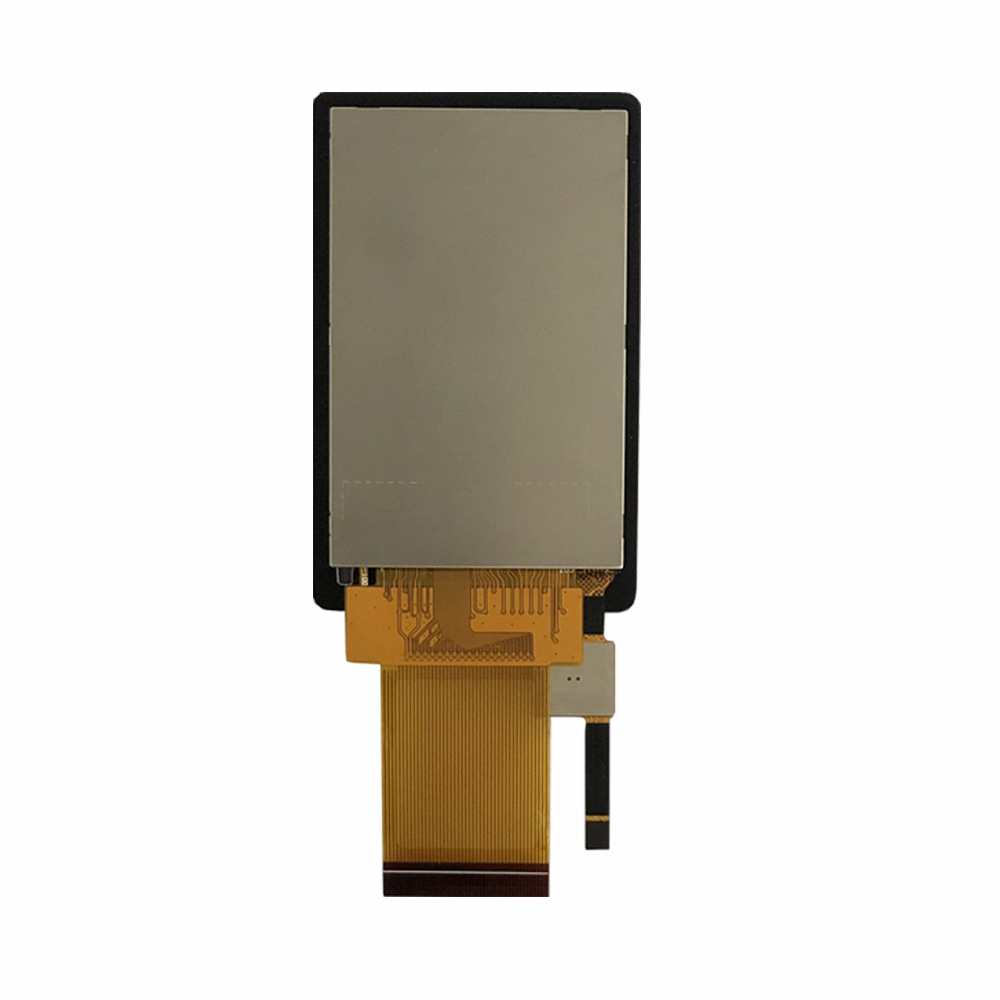

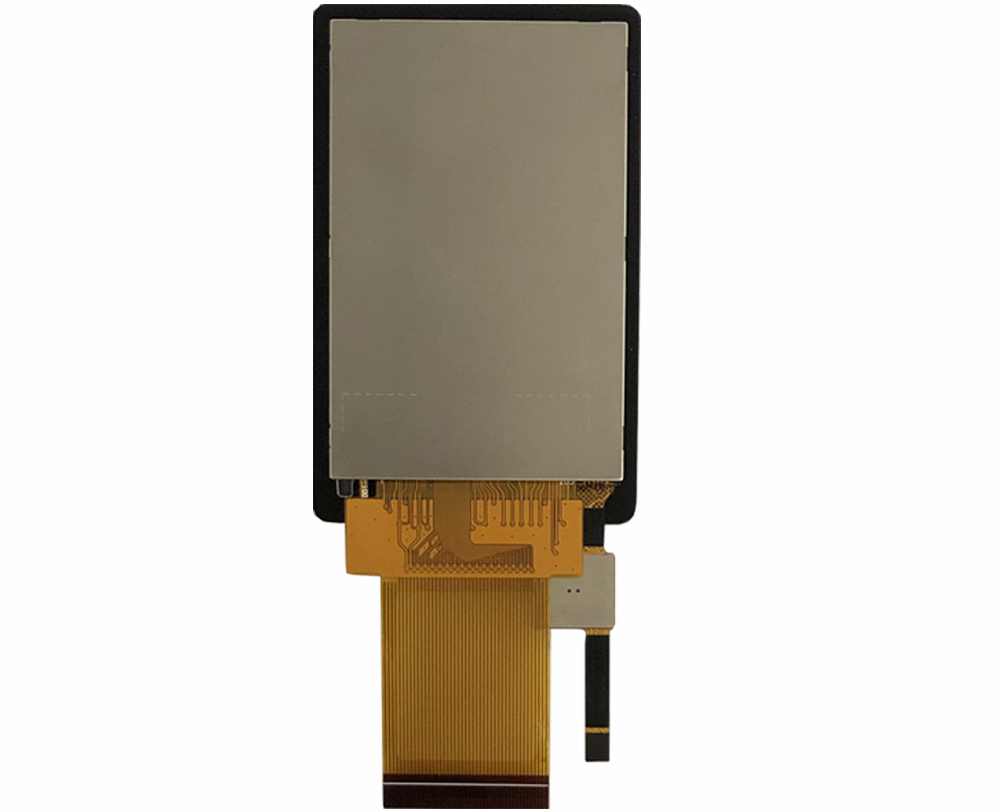

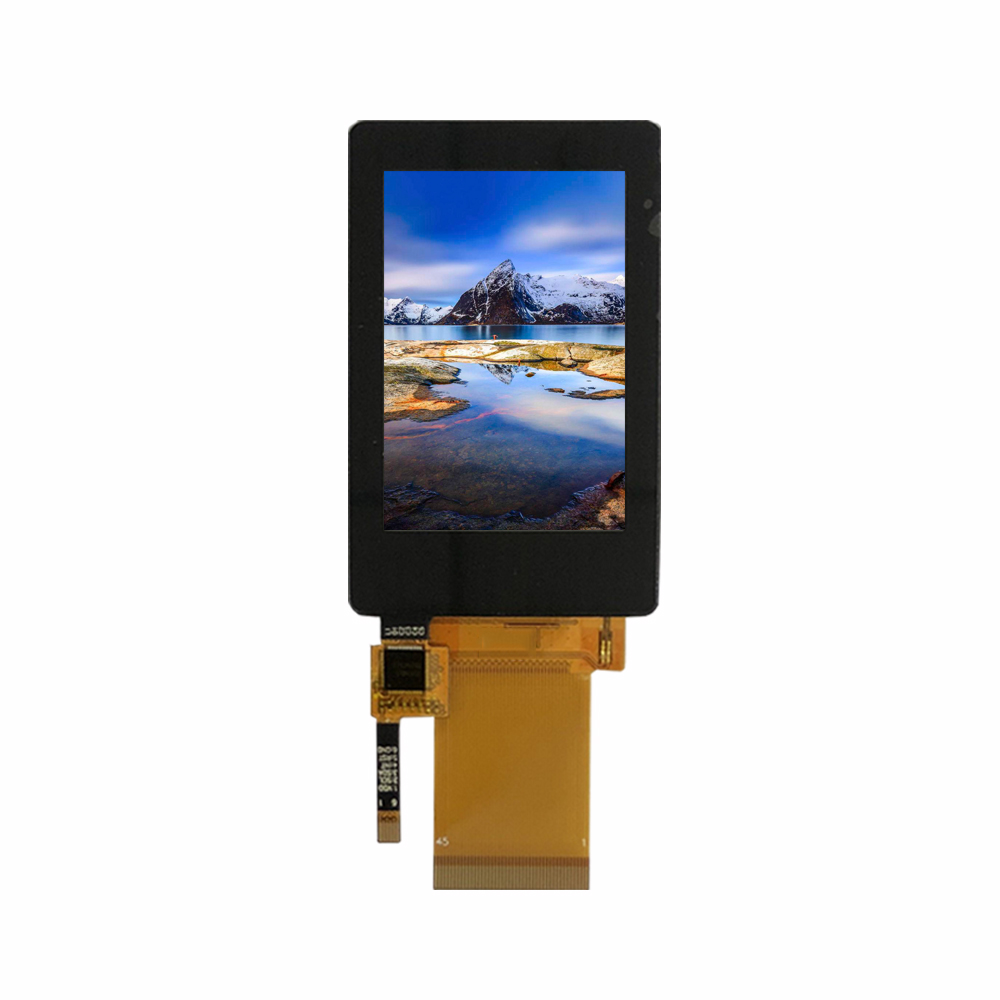

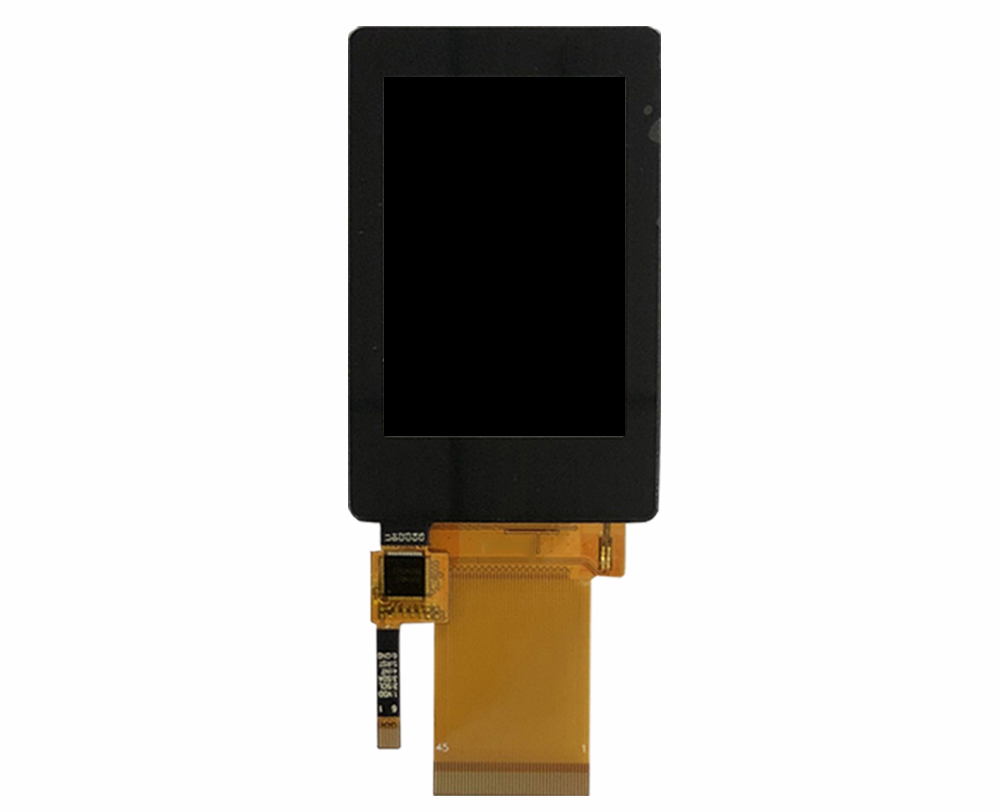

Product Image
