HC35HA14K0-A09
3.5" IPS LCD
320*480
ST7796
MCU/SPI/RGB Interface
Details
Product Parameter
|
Item |
Specification |
Unit |
|
Display area(AA) |
48.96(H)*73.44(V)(3.5 inch)
|
mm |
|
Outline Dimension |
-- |
mm |
|
Driver element |
TFT active matrix |
- |
|
Display colors |
65K/262K |
colors |
|
Number of pixels |
320(RGB)*480 |
dots |
|
Interface |
MCU/SPI/RGB |
|
|
Viewing anlge |
Free |
o'clock |
|
Driver |
ST7796 |
- |
|
Display mode |
Transmissive/Normally Black |
- |
|
Touch Option |
Capacitive touch |
|
|
Operating temperature |
-20～+70 |
℃ |
|
Storage temperature |
-30～+80 |
℃ |

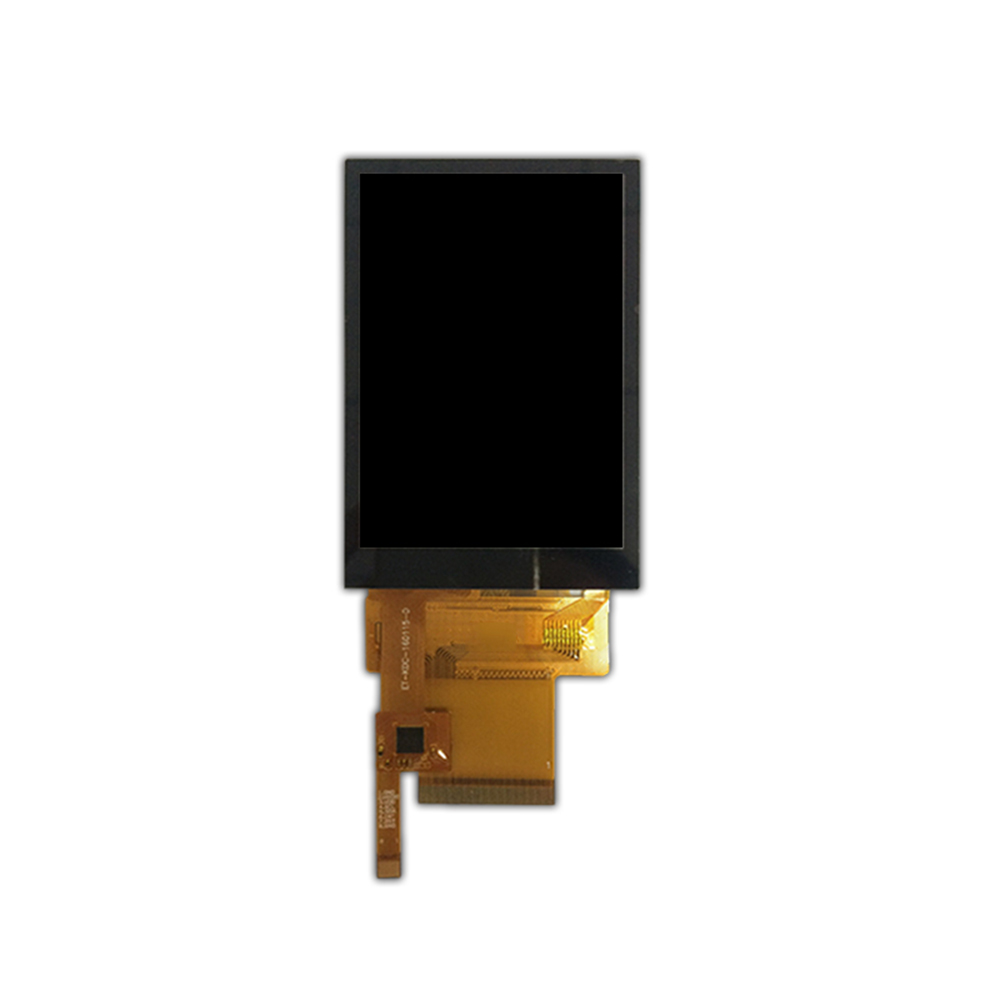

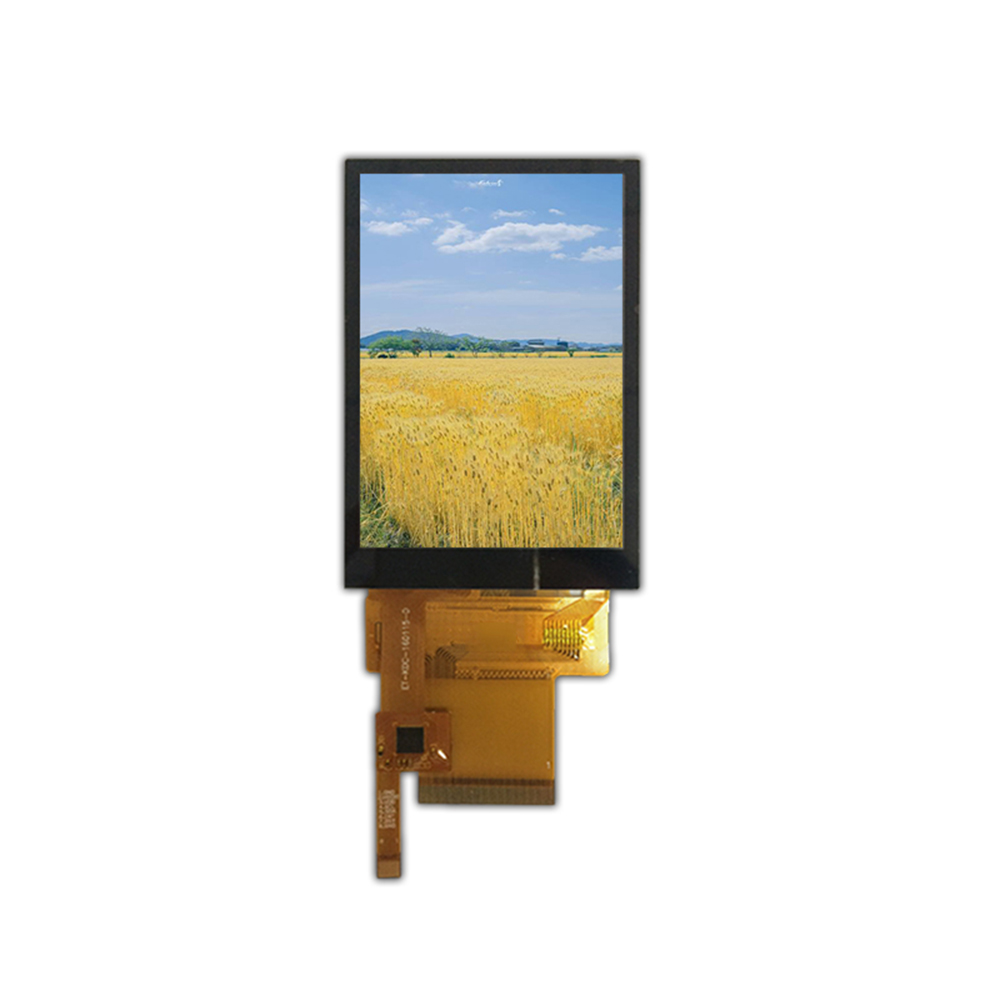

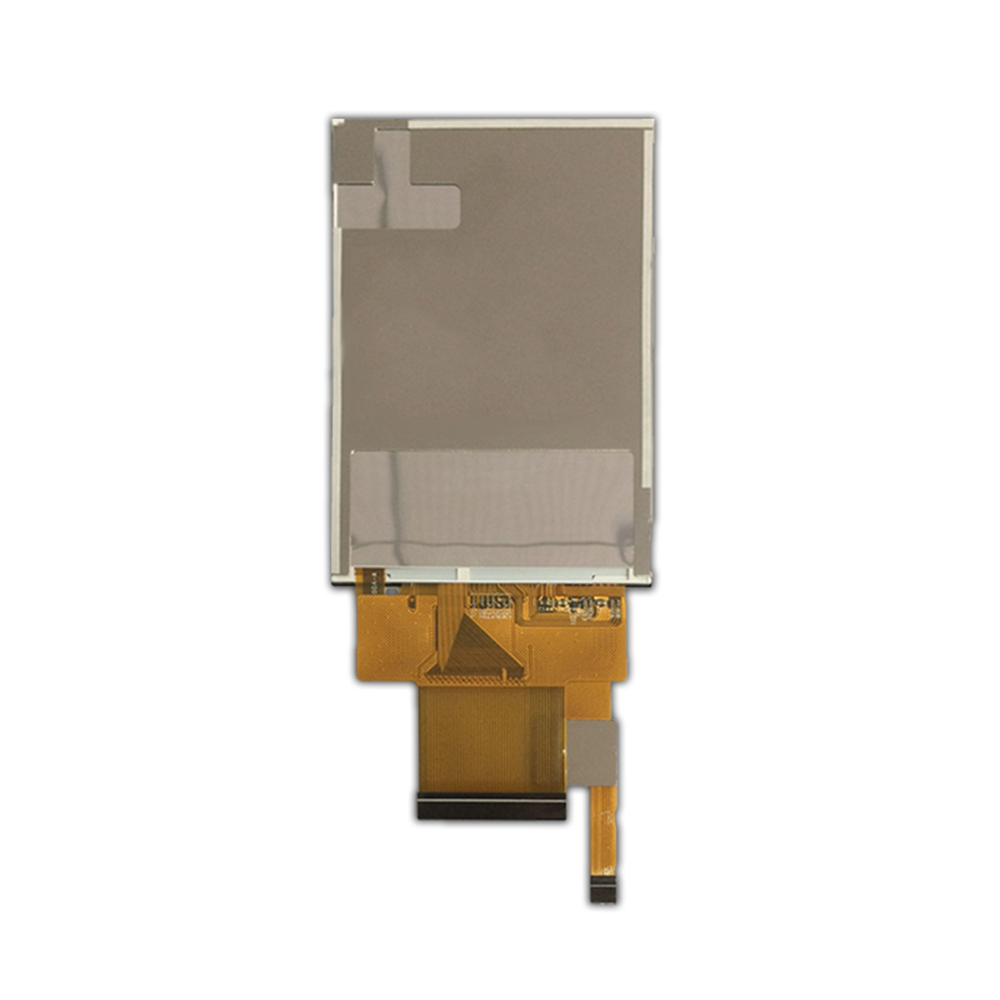

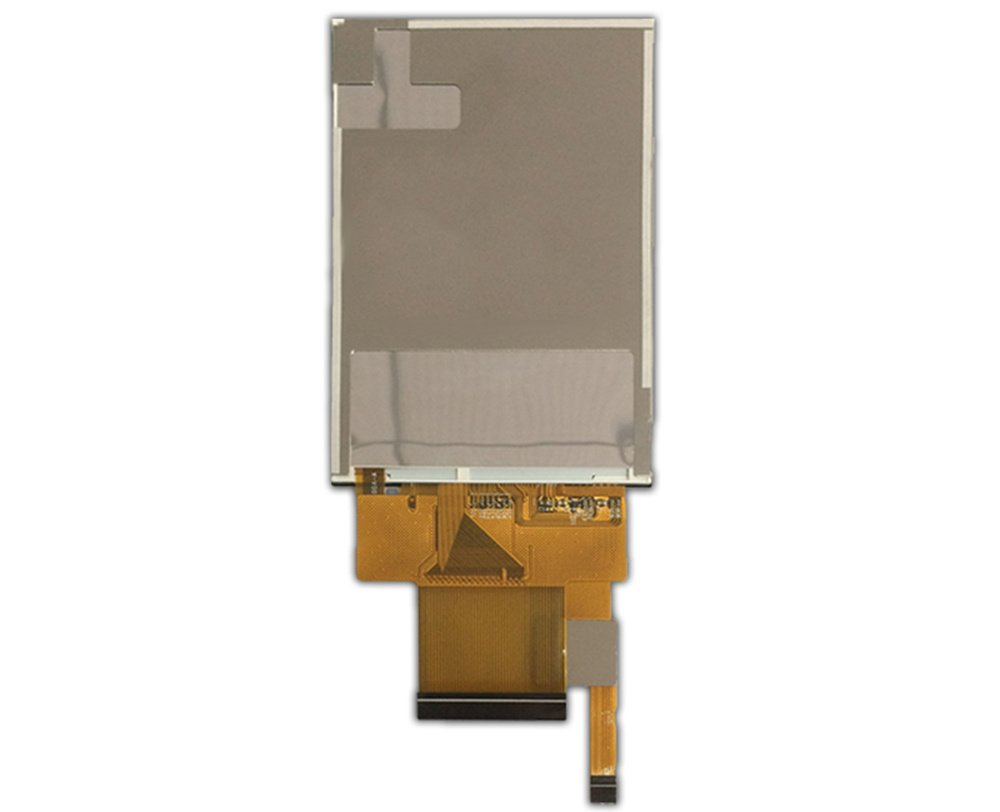

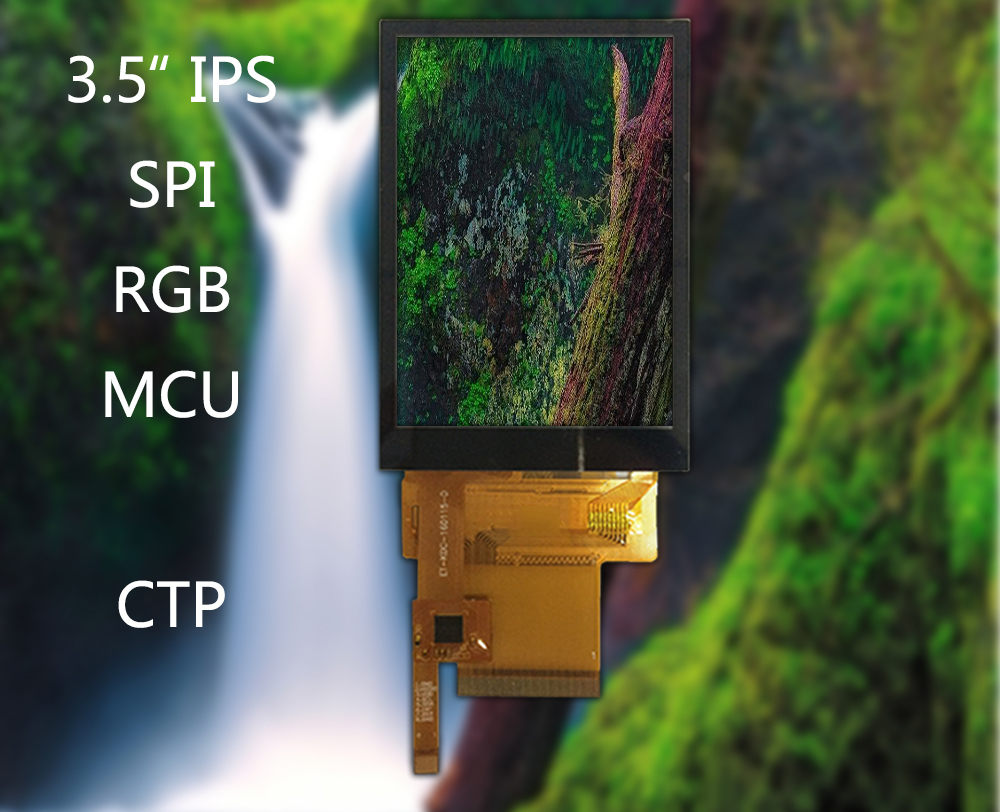

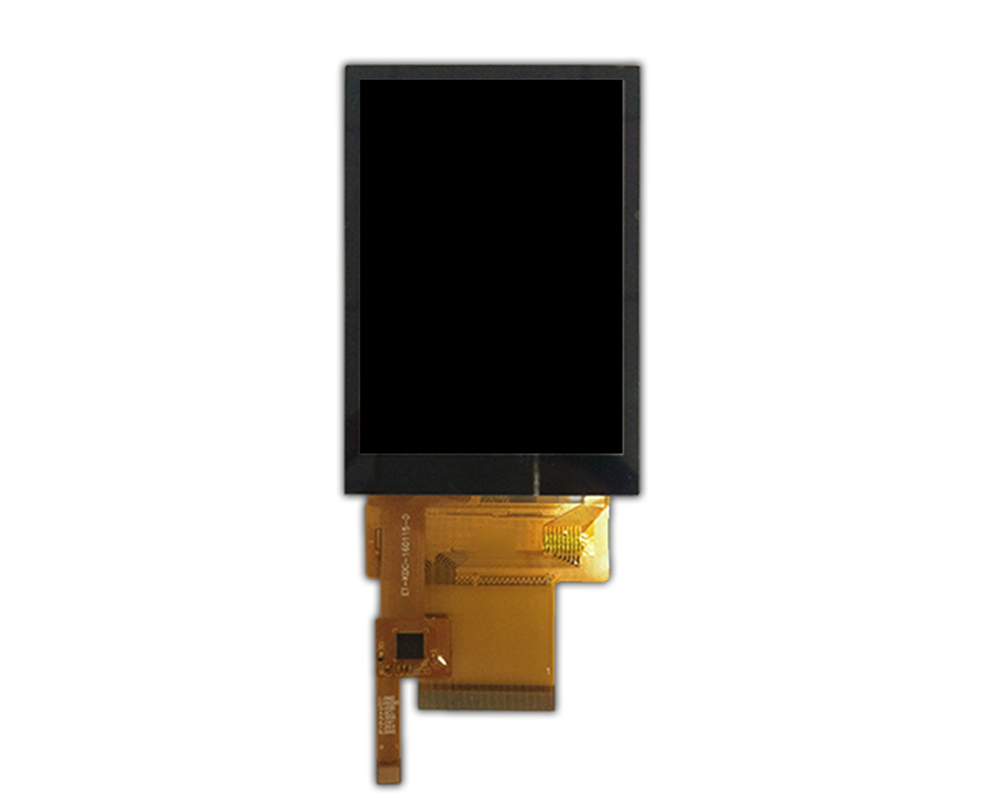

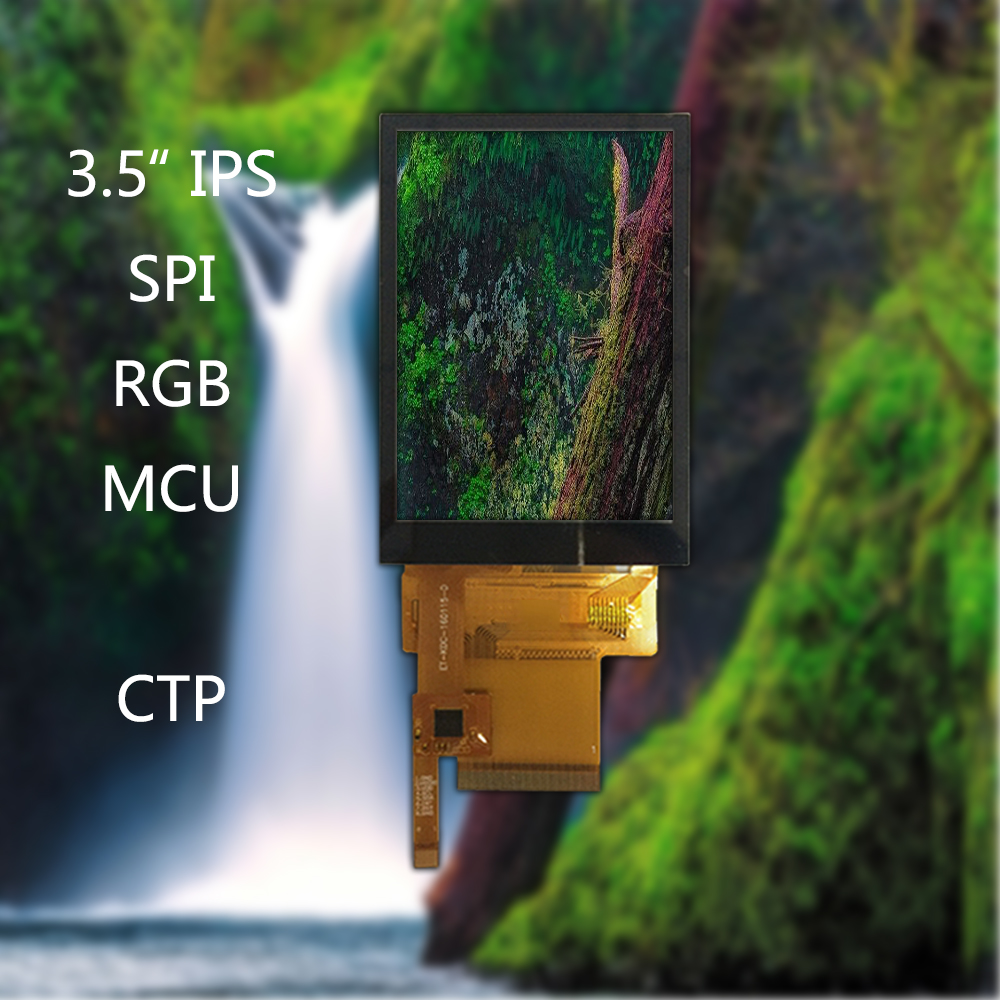

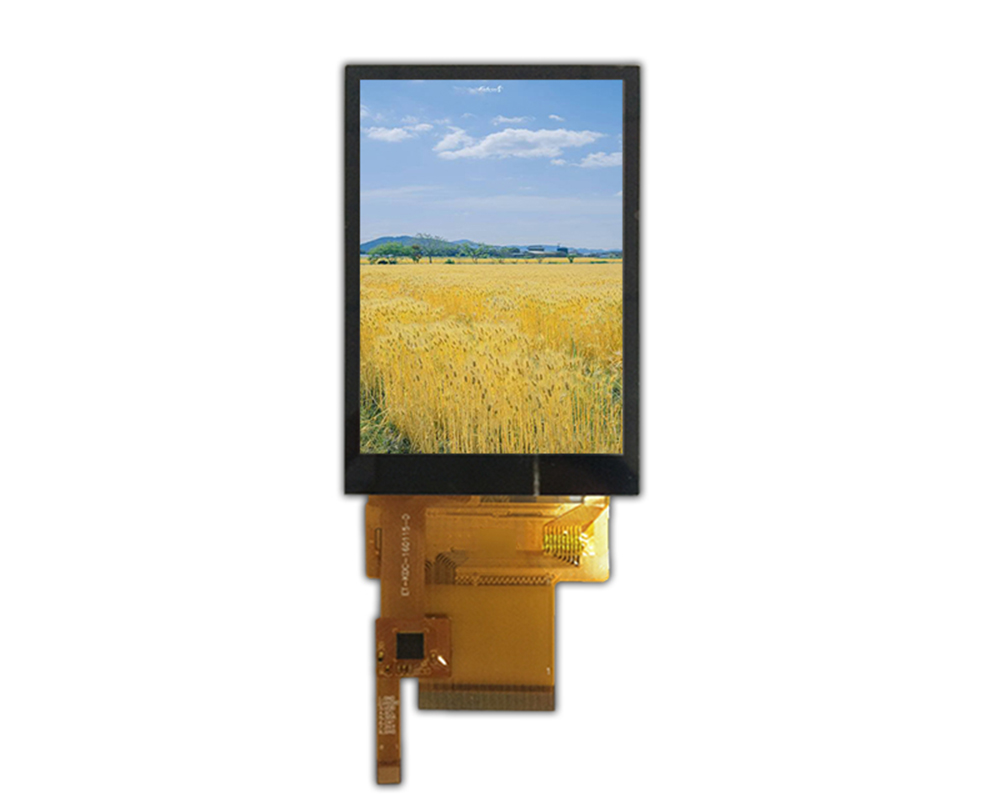

Product Image
Certificate
